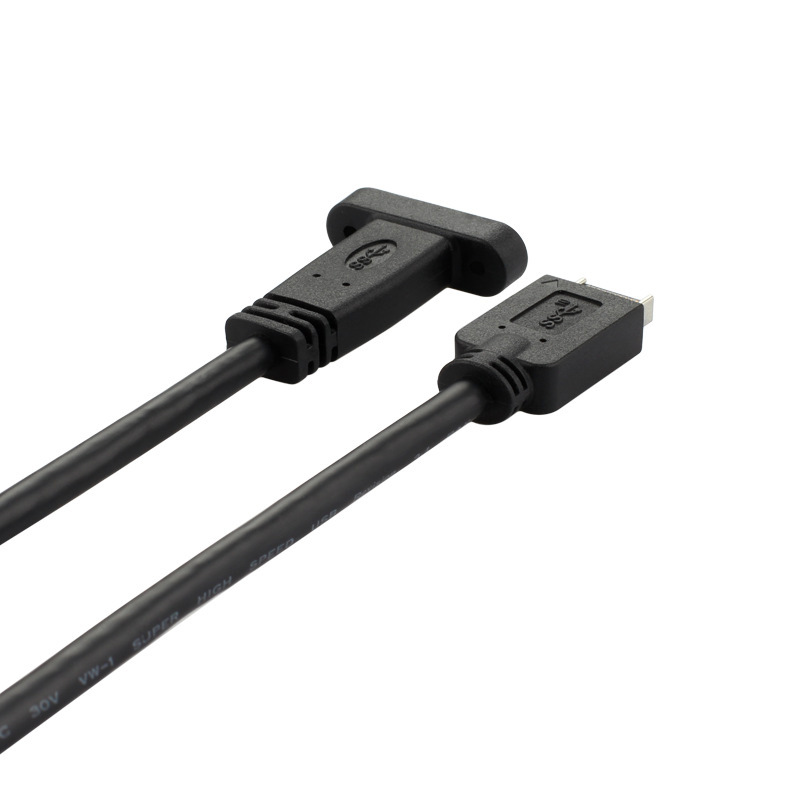

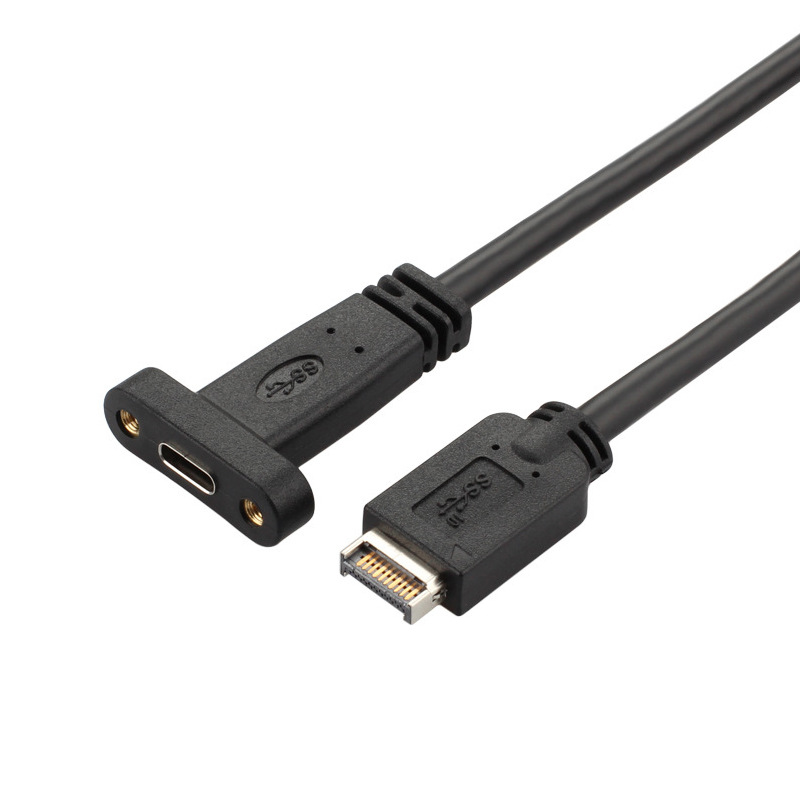

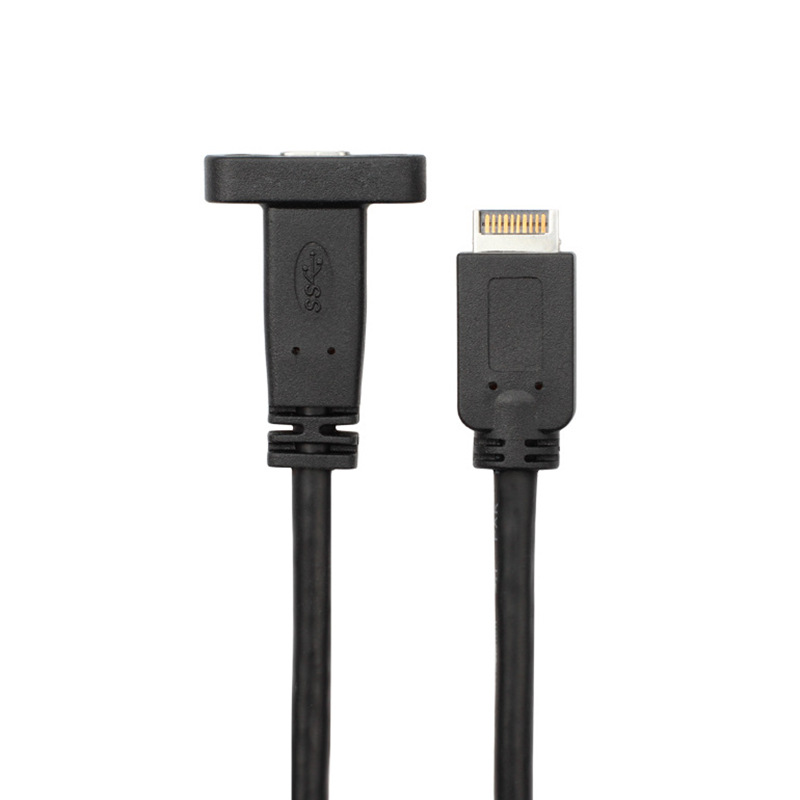

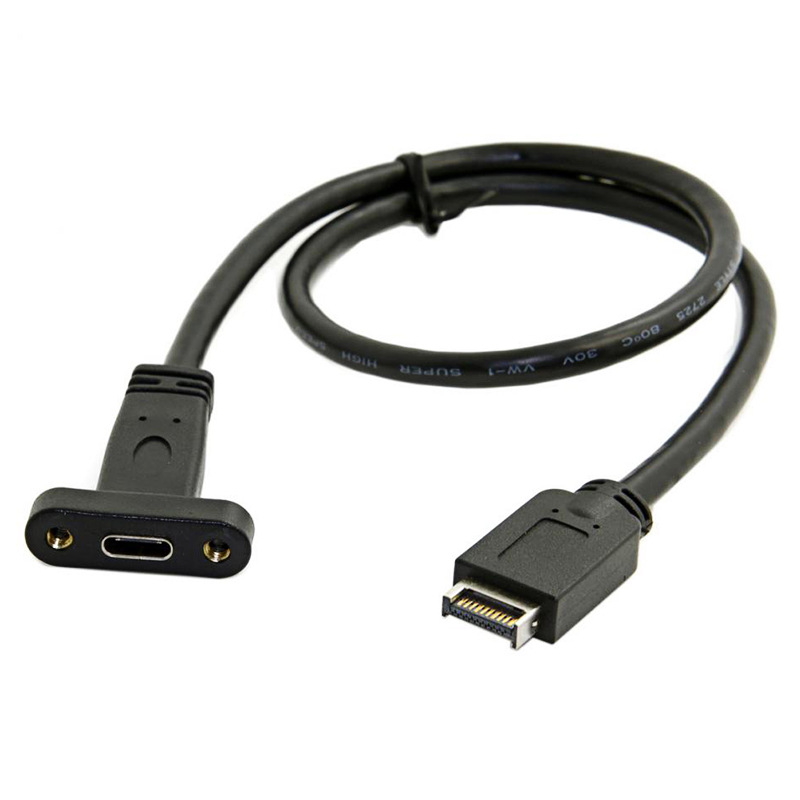

Revolutionize your connectivity solutions with the Panel Mount USB Type-E to USB 3.1 Type C Male to Female Extension Cable, engineered to excel in diverse applications.
Boasting a USB Type-E male connector and a USB 3.1 Type-C female connector with robust screw locking mechanism, this cable ensures steadfast connections in challenging environments.
The M3 nickel plated nut and screw type further enhance its durability, while the tinned copper conductor and dual-layer shielding (aluminum foil and braiding) preserve data integrity for lightning-fast data transfer speeds of up to 10Gbps.
Supporting resolutions up to 4K@60Hz and USB quick charging up to 100W, it’s a powerhouse for high-definition multimedia and fast-charging applications.
Its specifications:
- Connector 1: USB Type E male
- Connector 2: USB 3.1 Type C female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 20±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 32AWG
- Outer Diameter: 4.6mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support up to a 4K@60Hz resolution
- Ultra-Fast Data Transfer/Sync (up to 10Gbps), also support USB quick charging up to 100W
- Compliance: RoHS, REACH
