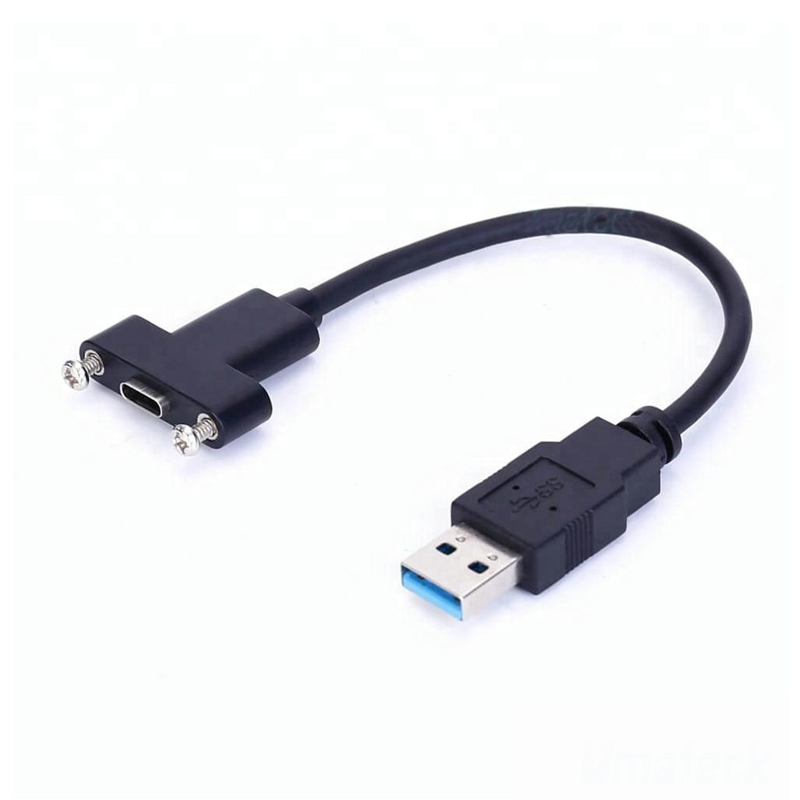

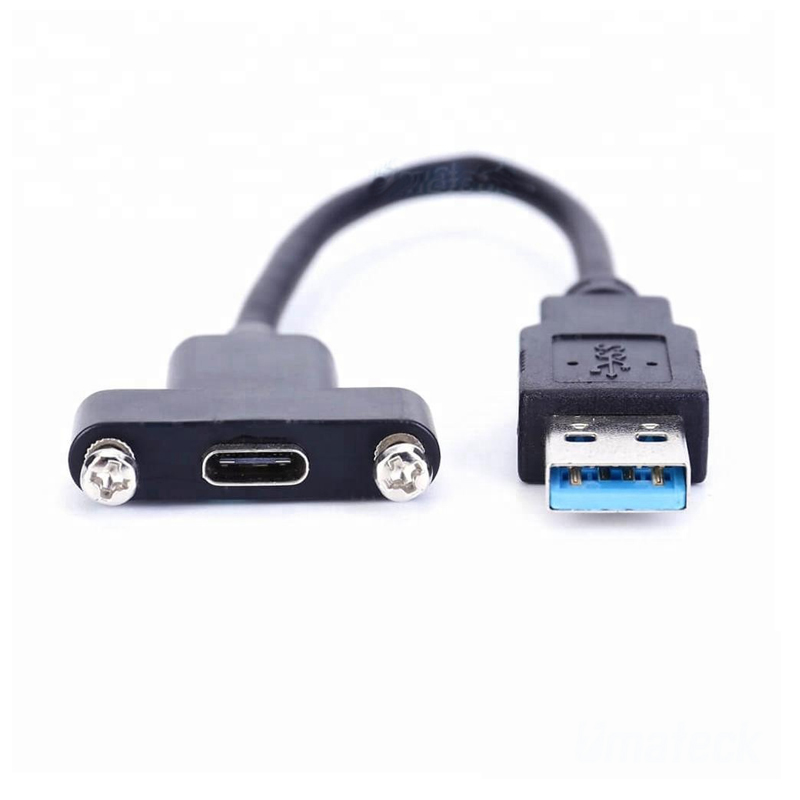

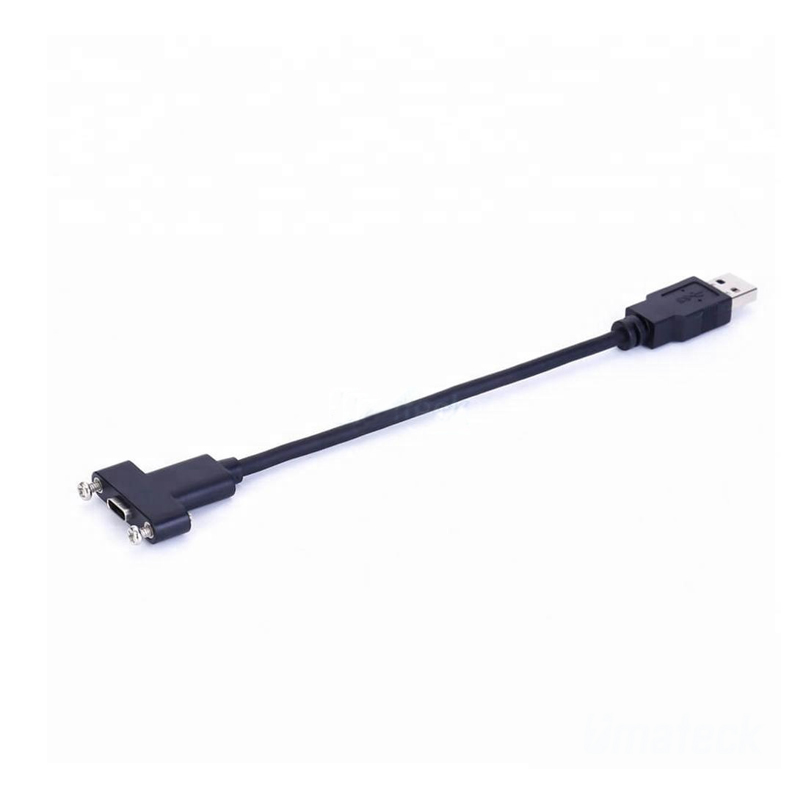

Our Panel Mount USB C to USB 3.0 A Female to Male Extension Cable seamlessly merges USB cables within a panel, ensuring secure connectivity.
With a transfer rate of up to 5 Gbps, it guarantees swift data transmission. Its PVC jacket, along with foil and braid shielding, prevents interference for error-free transfers.
This cable prioritizes user convenience with its easy-to-attach feature, making it ideal for various applications requiring high-speed connectivity.
Its specifications:

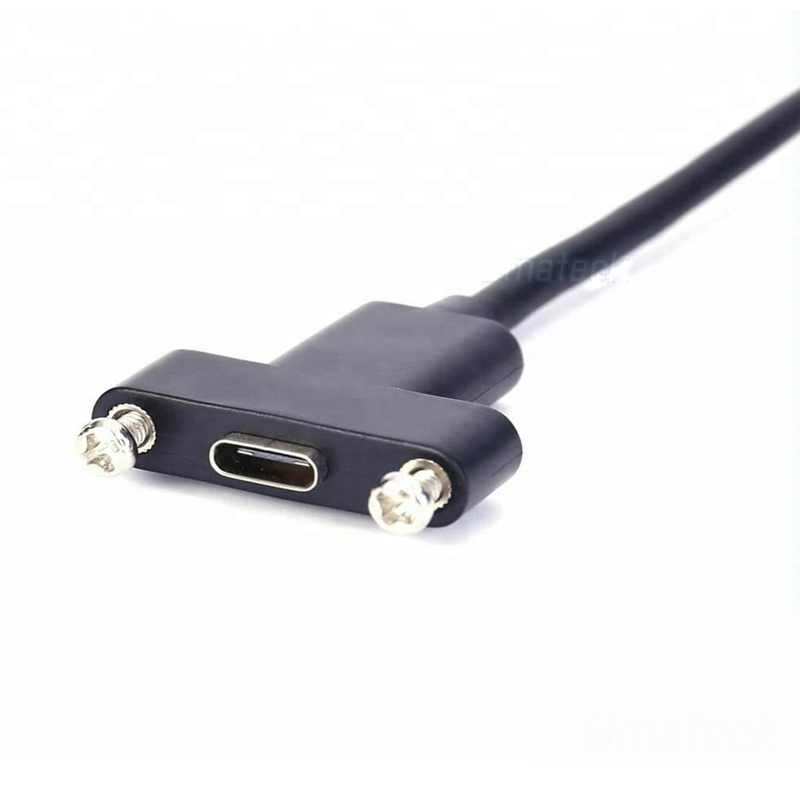

- Connector 1: USB Type-C female with screw locking

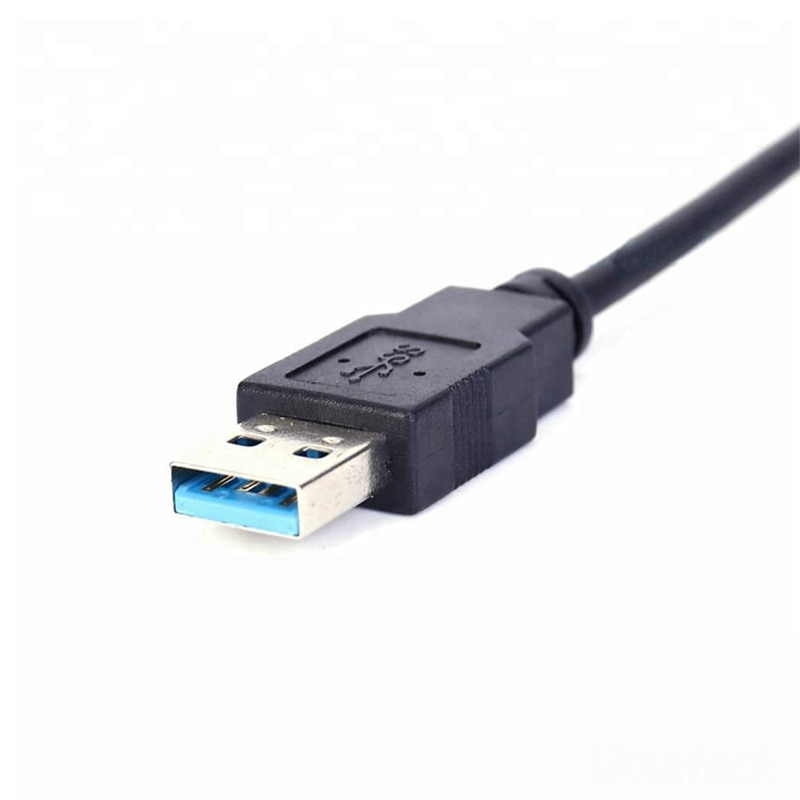

- Connector 2: USB 3.0 A male
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 17±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 30/30/24AWG
- Outer Diameter: 4.5±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
