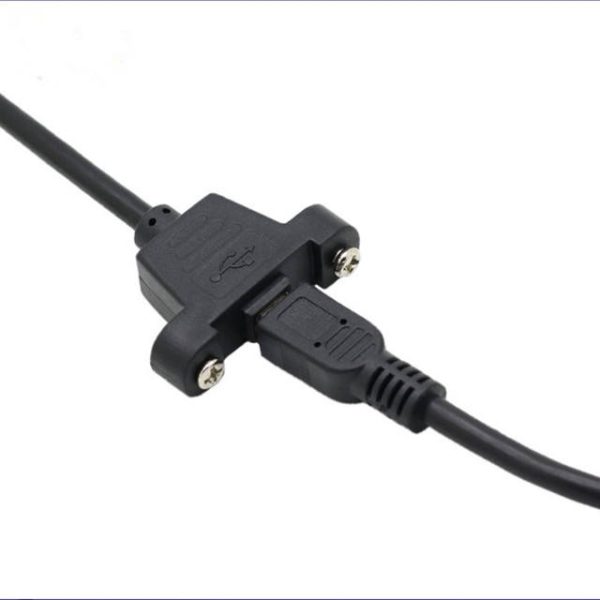

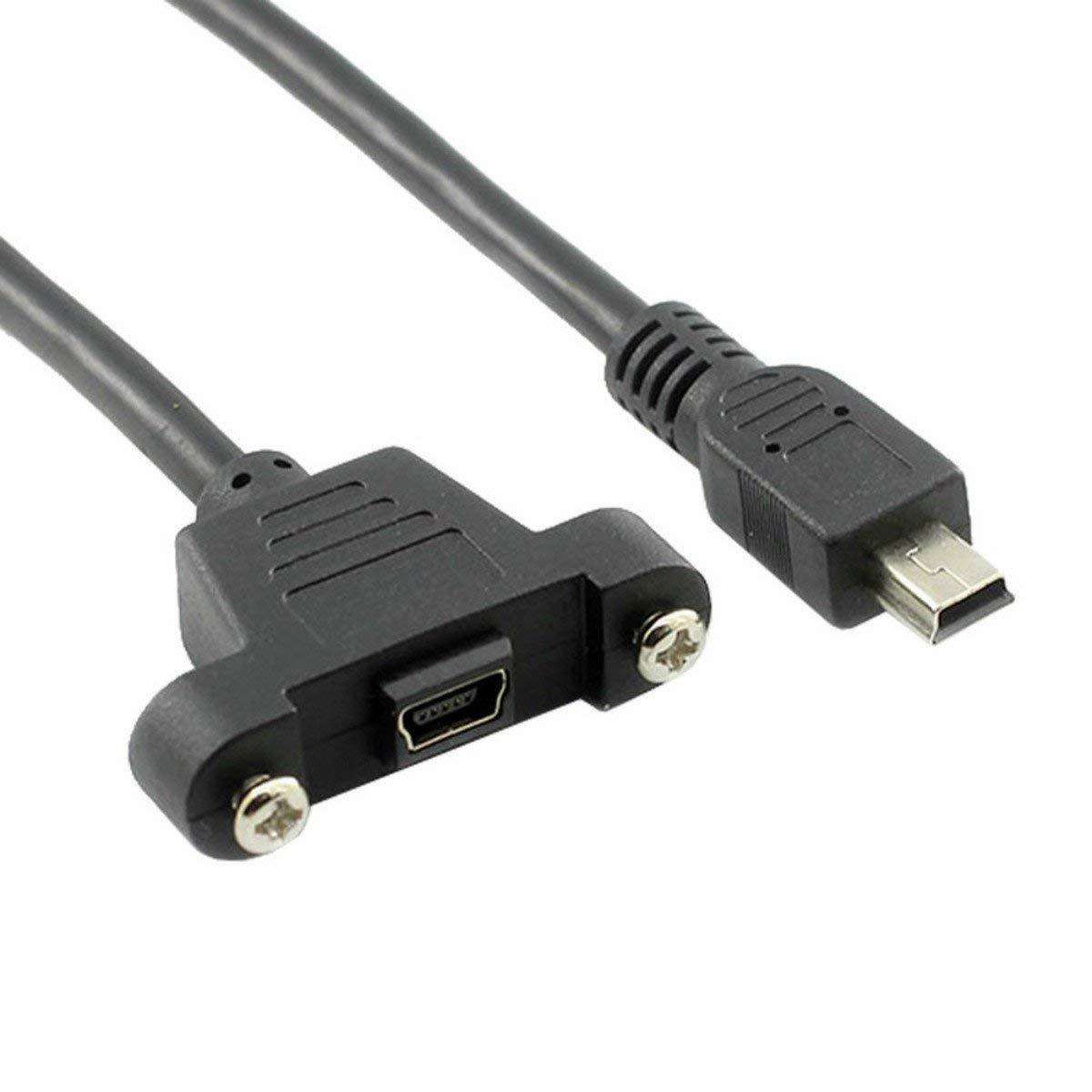

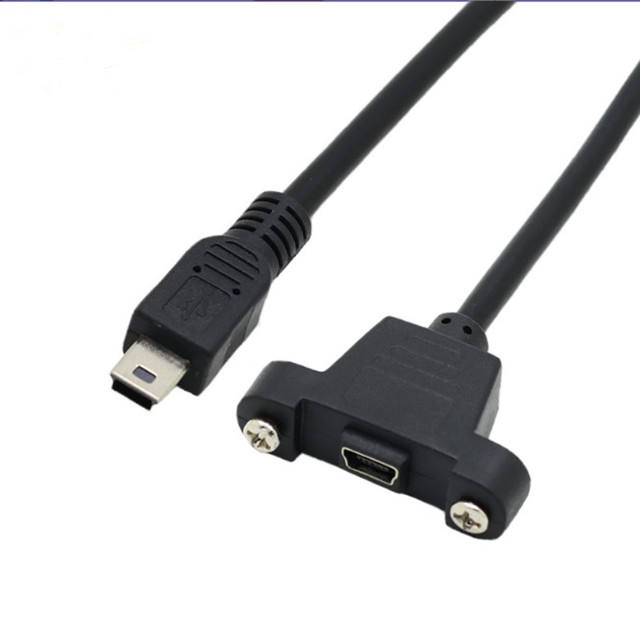

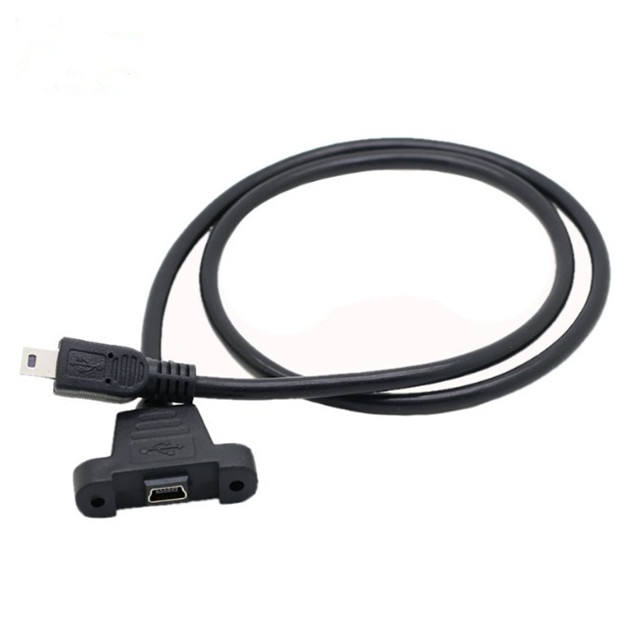

Introducing our Mini USB 2.0 Panel Mount Cable – the epitome of reliability and efficiency.
Featuring a Mini 5PIN USB 2.0 male connector and a secure screw-locking Mini 5PIN USB 2.0 female connector, this cable ensures steadfast connections.
Crafted with durability in mind, it boasts M3 nickel-plated nut and screw type, along with a 27mm pitch for easy installation.
With bare copper conductors and aluminum foil shielding, it guarantees optimal signal integrity and protection against interference.
Supporting high-speed USB 2.0 devices with a transfer rate of 480Mbps, it enables swift data transmission.
Compliant with RoHS and REACH standards, this cable prioritizes environmental responsibility without compromising on performance.
Its specifications:
- Connector 1: Mini 5PIN USB 2.0 male
- Connector 2: Mini 5PIN USB 2.0 female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 27±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/24AWG
- Outer Diameter: 4.5±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support high speed USB 2.0 devices and the transfer rate reaches to 480Mbps
- Backward compliant with full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
