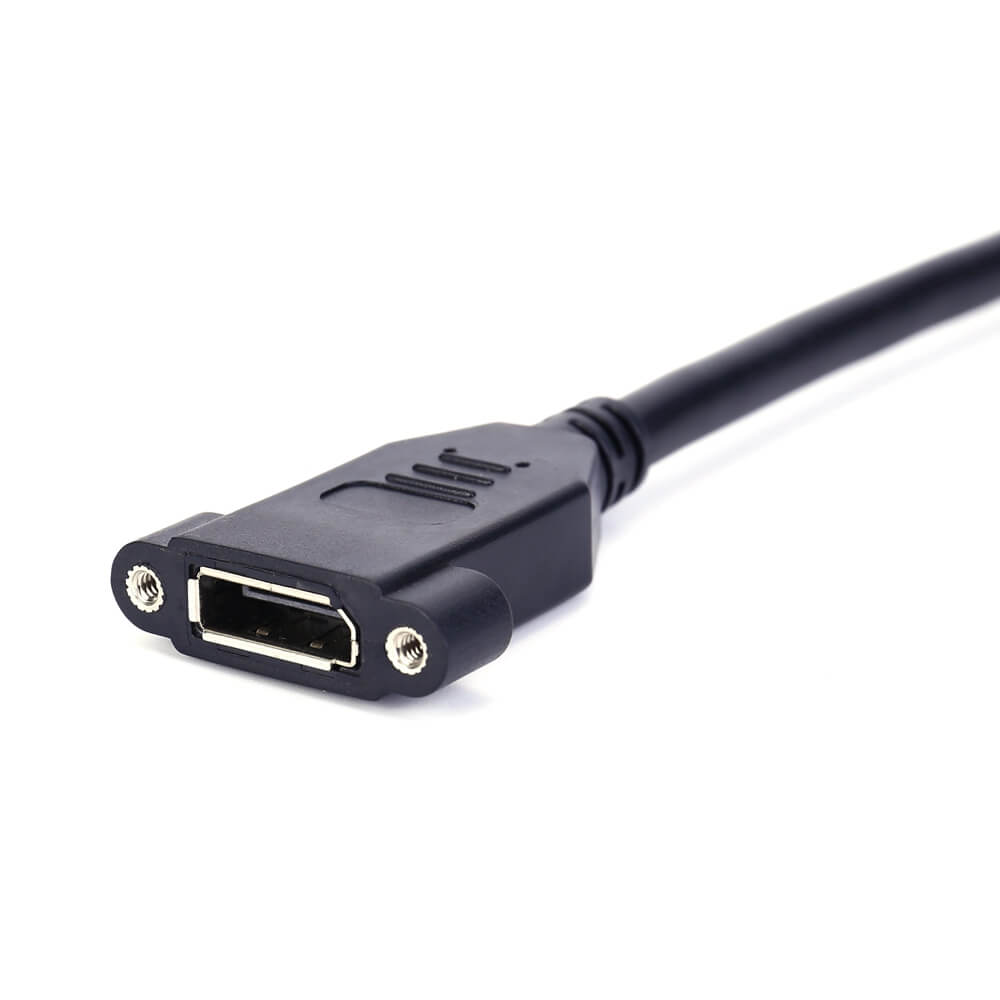

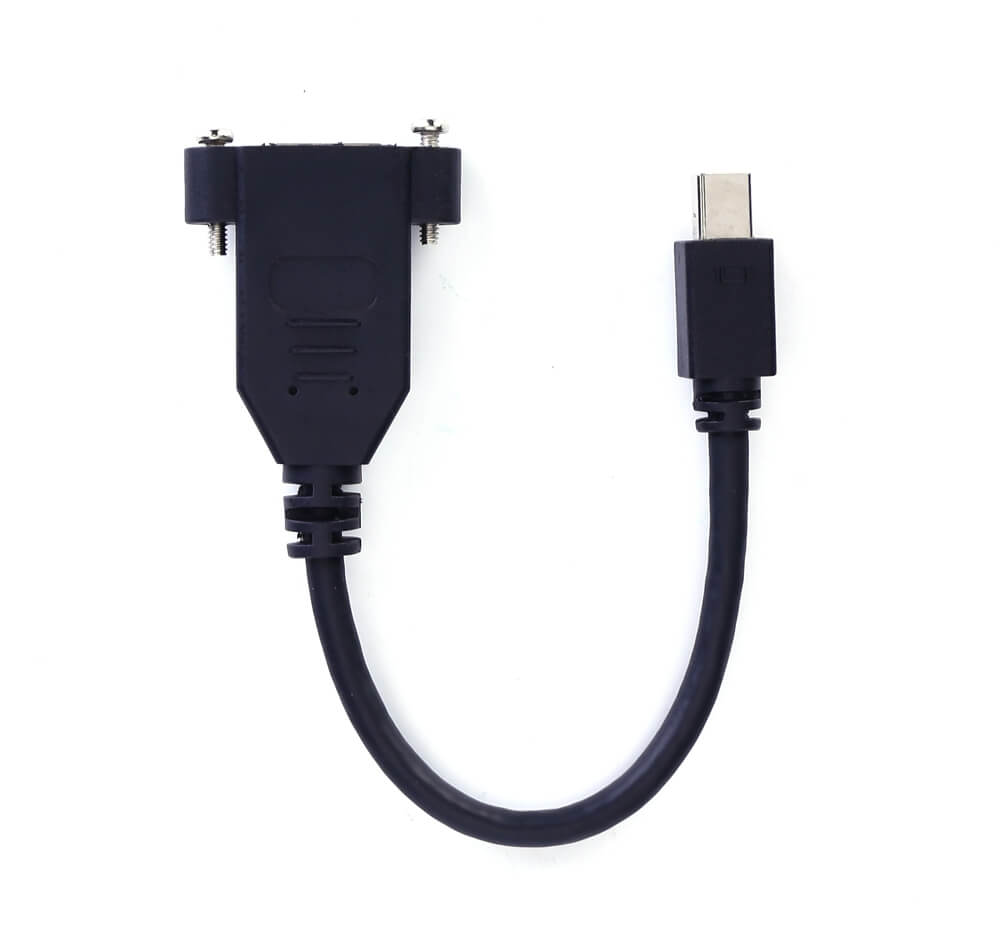

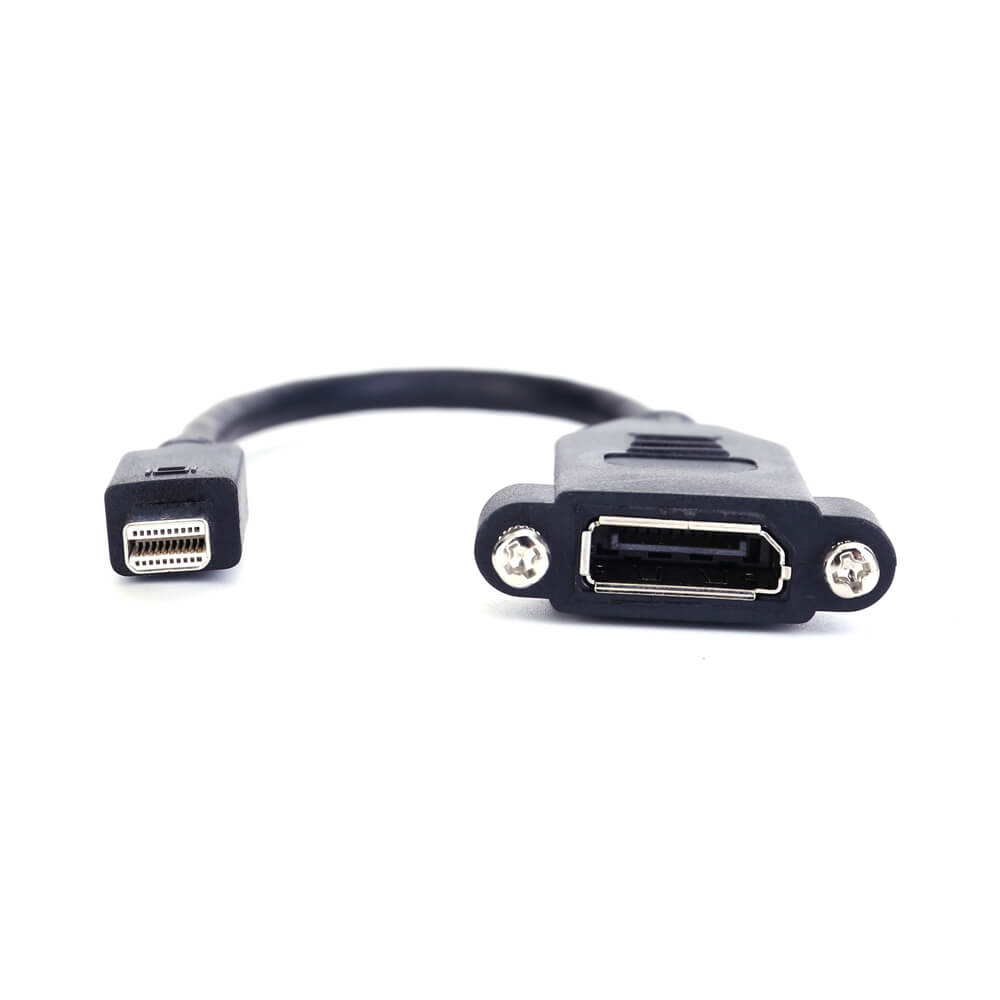

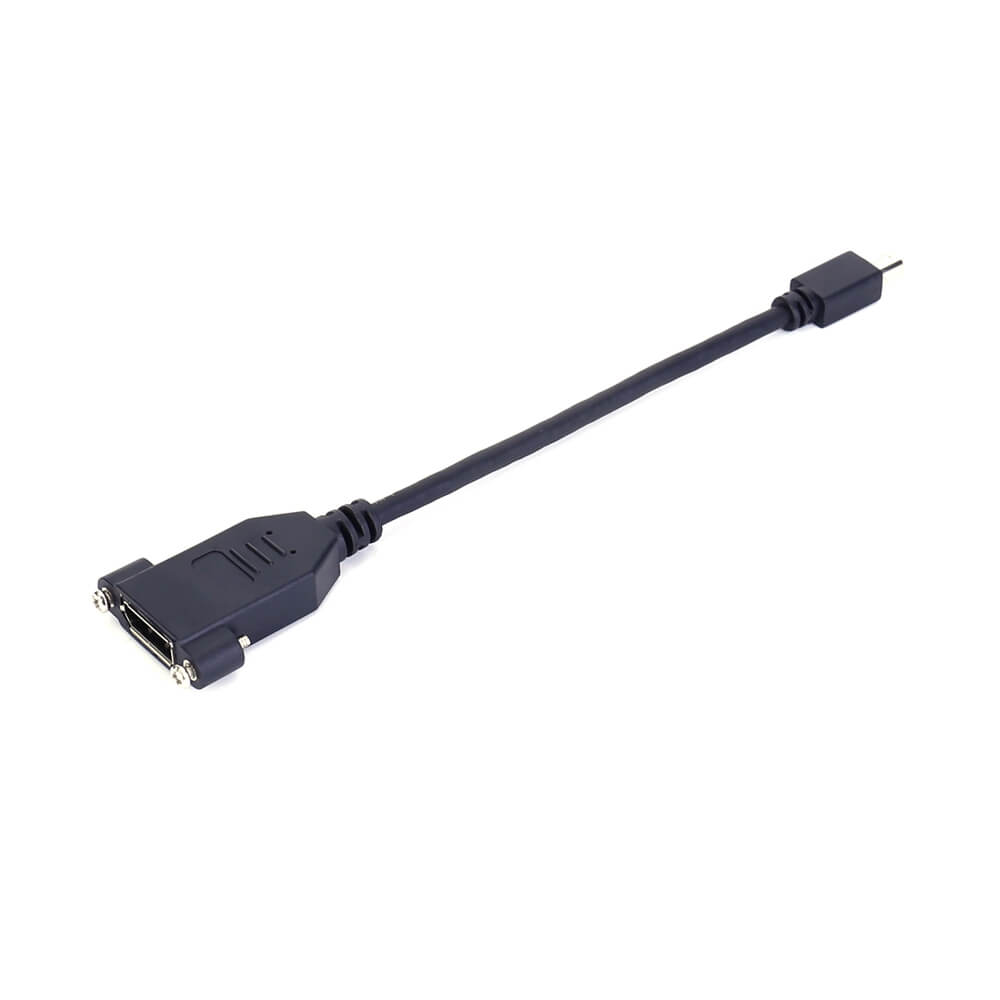

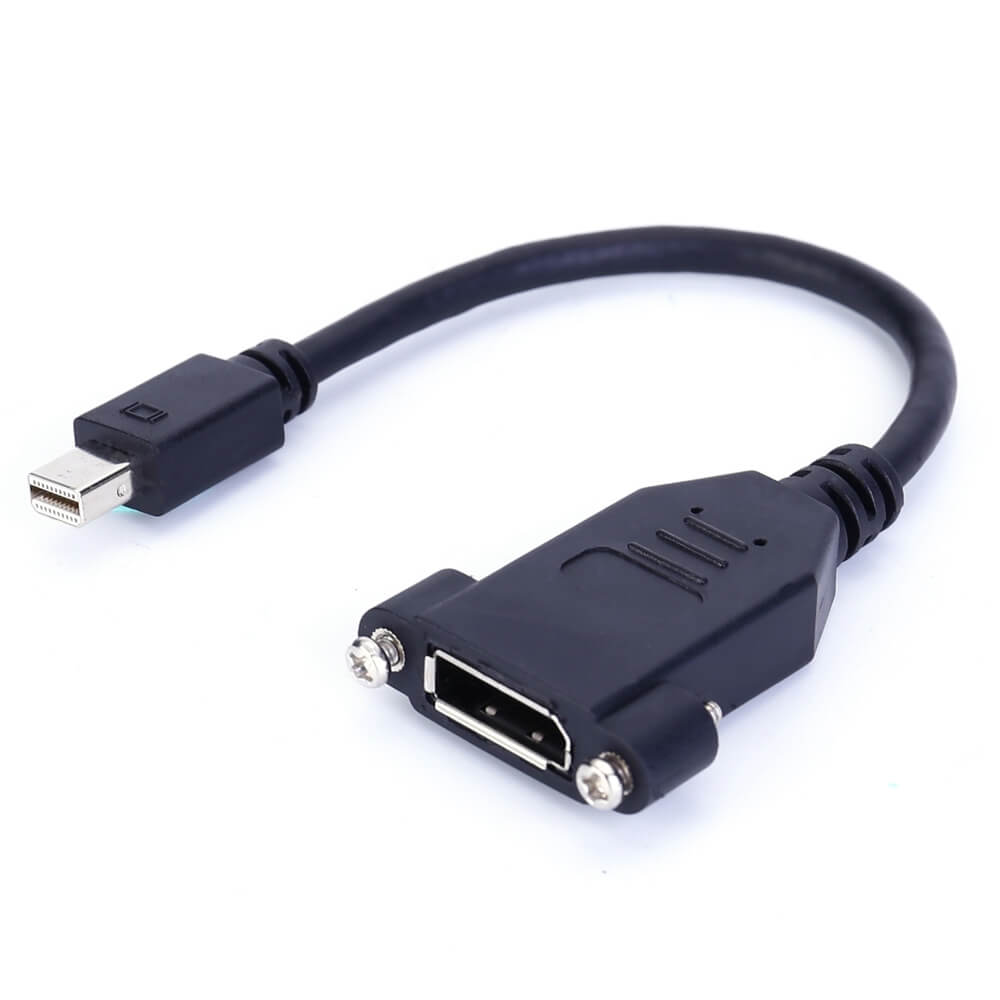

FARSINCE Mini DP to DP Panel Mount Cable: Seamlessly merge your DisplayPort and Mini DisplayPort cables with our reliable solution.
Designed for connectivity through a panel, this cable boasts a construction of top-grade materials, including tinned copper conductor, aluminum foil, and braiding shielding, all encased in a durable PVC jacket.
Experience flawless transmission with support for High Bit Rate bandwidth and up to 4K resolution, meeting DisplayPort 1.2 standards. Rest easy knowing it’s certified with RoHS and REACH, and backed by a solid 2-year warranty. Elevate your connectivity with confidence in quality and reliability.
Its specifications:

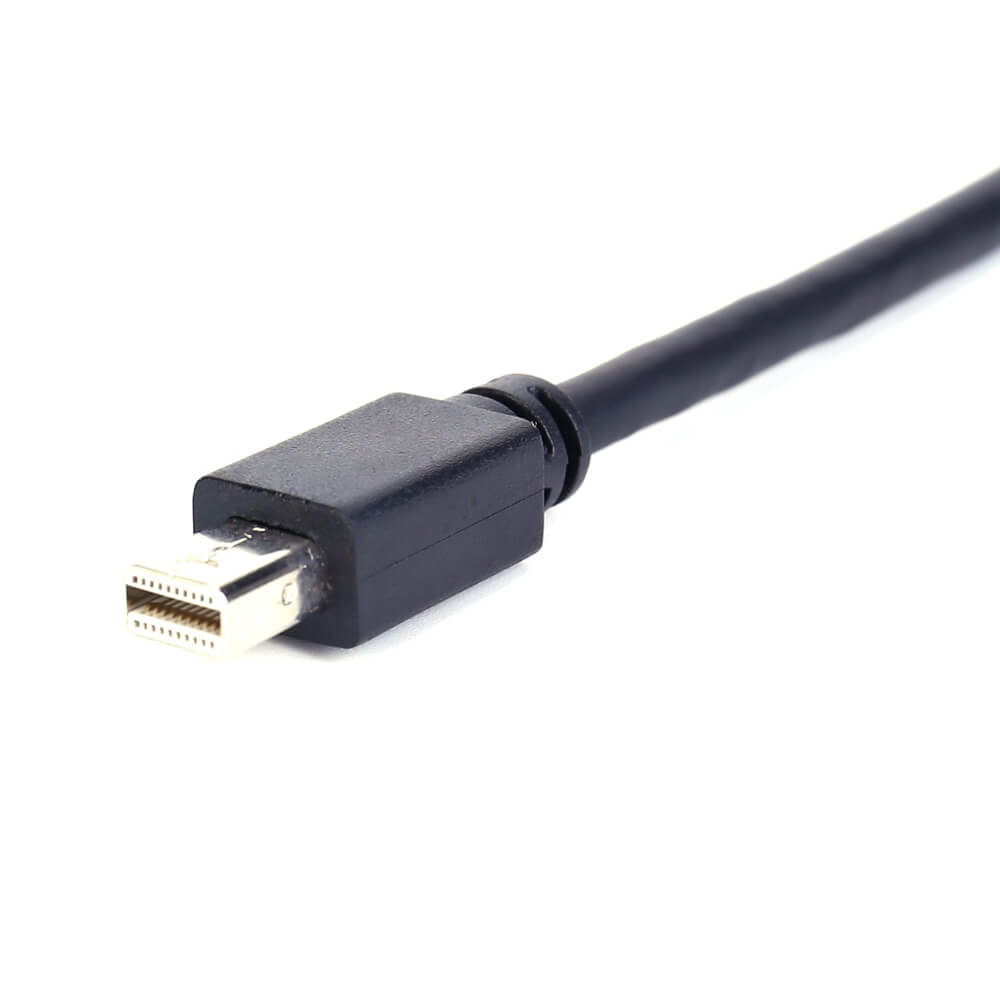

- Connector 1: Mini DisplayPort male, Gold plated
- Connector 2: DisplayPort female with screw locking, Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 27±0.5mm
- Cable Conductor: Thinned Copper
- Wire Gauge: 32AWG
- Outer Diameter: 5.0±0.2mm
- Shielding: Aluminum foil
- Housing: Injection molding
- Jacket: PVC
- Supports a High Bit Rate (HBR) bandwidth and up to a 4K resolution
- Built to DisplayPort 1.2 standard
- Compliance: RoHS, REACH
