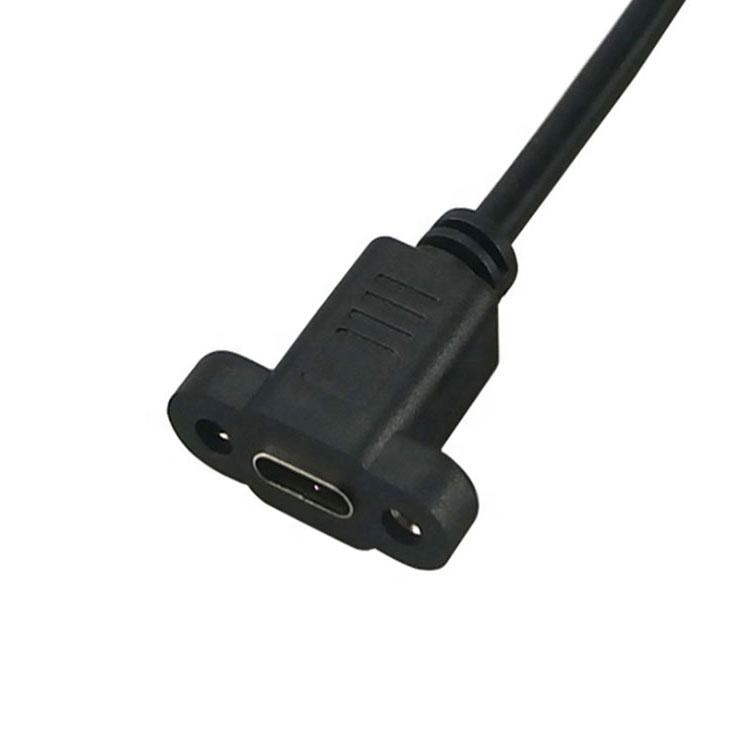

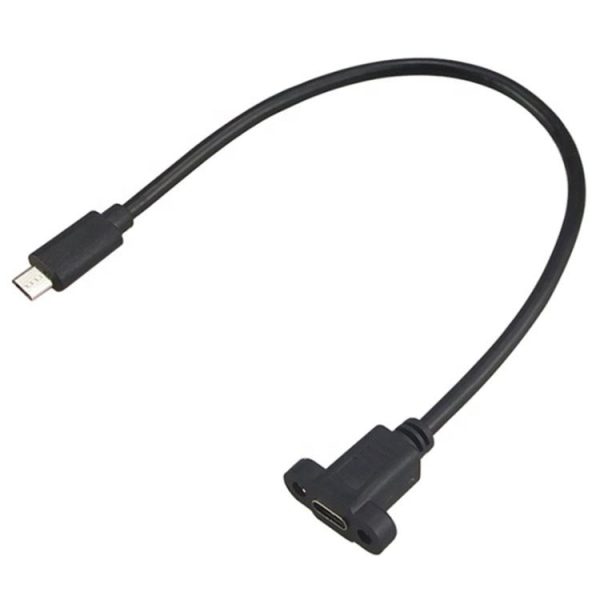

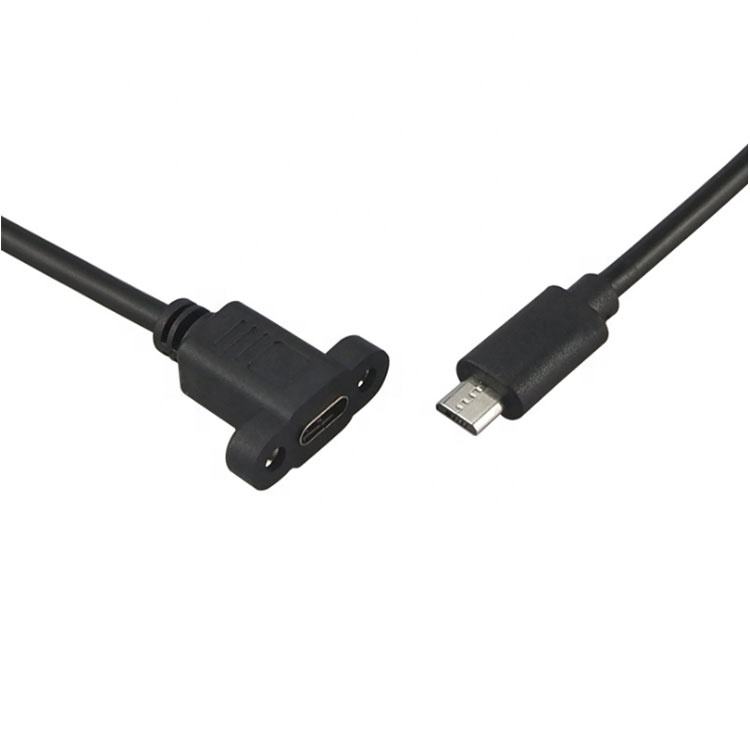

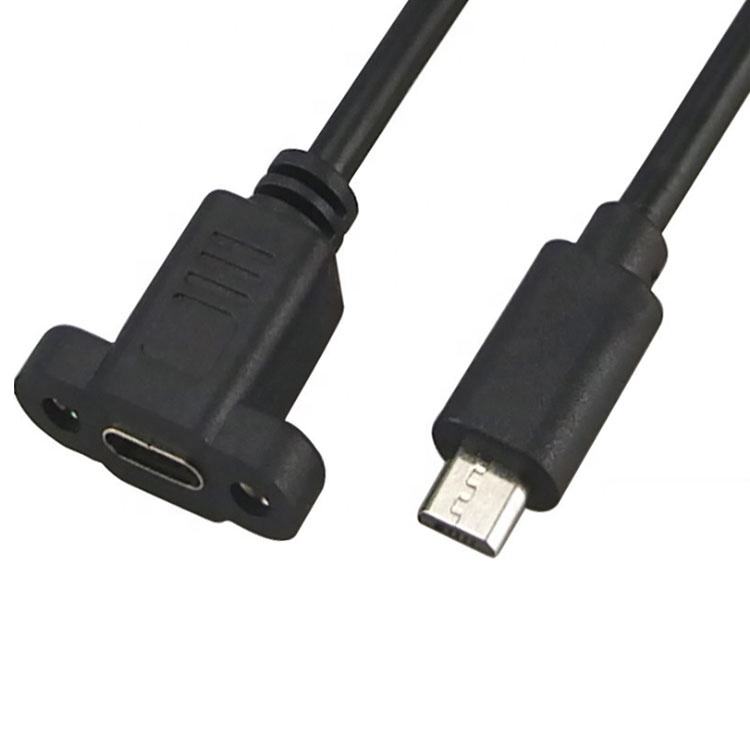

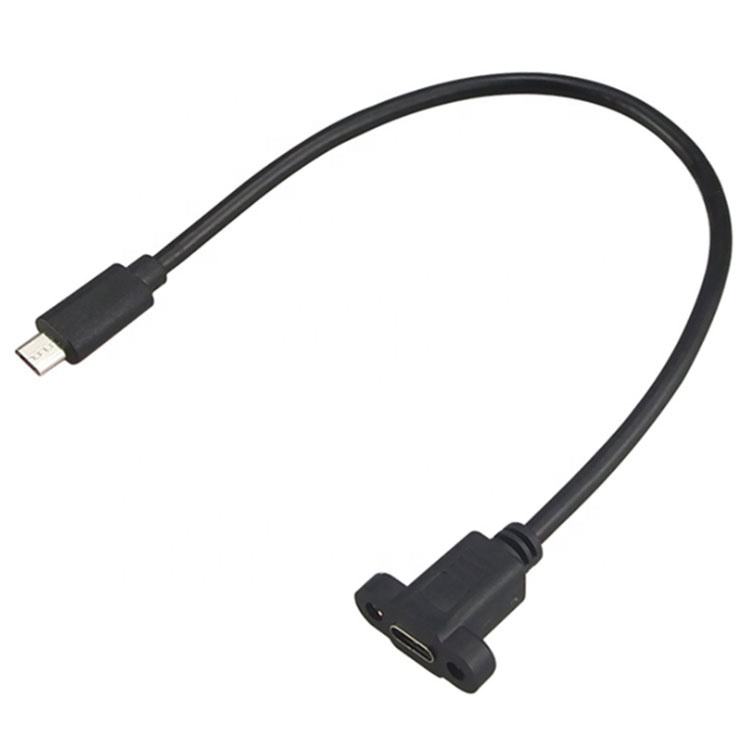

Discover seamless connectivity with our Micro USB 2.0 to USB-C Panel Mount Cable. Featuring precision-engineered Micro 5PIN USB 2.0 male to USB 2.0 Type-C female connectors with screw locking for secure connections.
Engineered with M3 nickel-plated nut and screw type for easy installation, with a 17mm hole pitch and slim 4.5mm outer diameter.
Experience rapid 480Mbps data transfer for high-speed USB 2.0 devices, shielded for optimal signal integrity and interference protection.
Compliant with RoHS and REACH standards, our cable meets industry benchmarks for quality and environmental responsibility.
Upgrade confidently with our Micro USB 2.0 to USB-C Panel Mount Cable – the pinnacle of connectivity.
Its specifications:

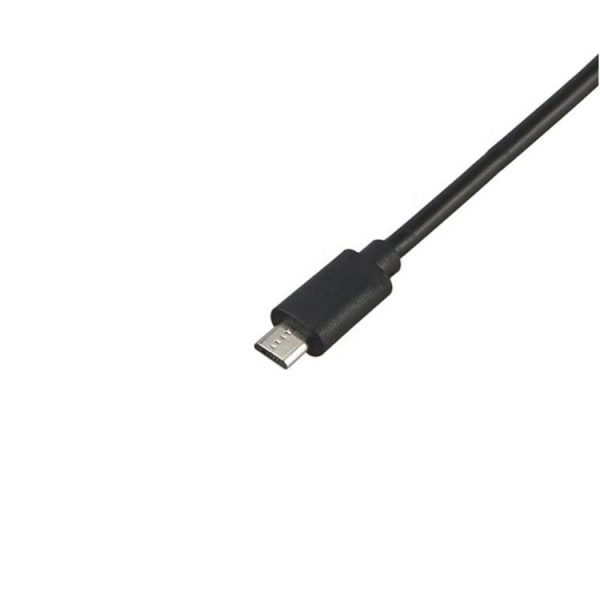

- Connector 1: Micro 5PIN USB 2.0 male
- Connector 2: USB 2.0 Type-C female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 17±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/24AWG
- Outer Diameter: 4.5±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support high speed USB 2.0 devices and the transfer rate reaches to 480Mbps
- Backward compliant with full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
