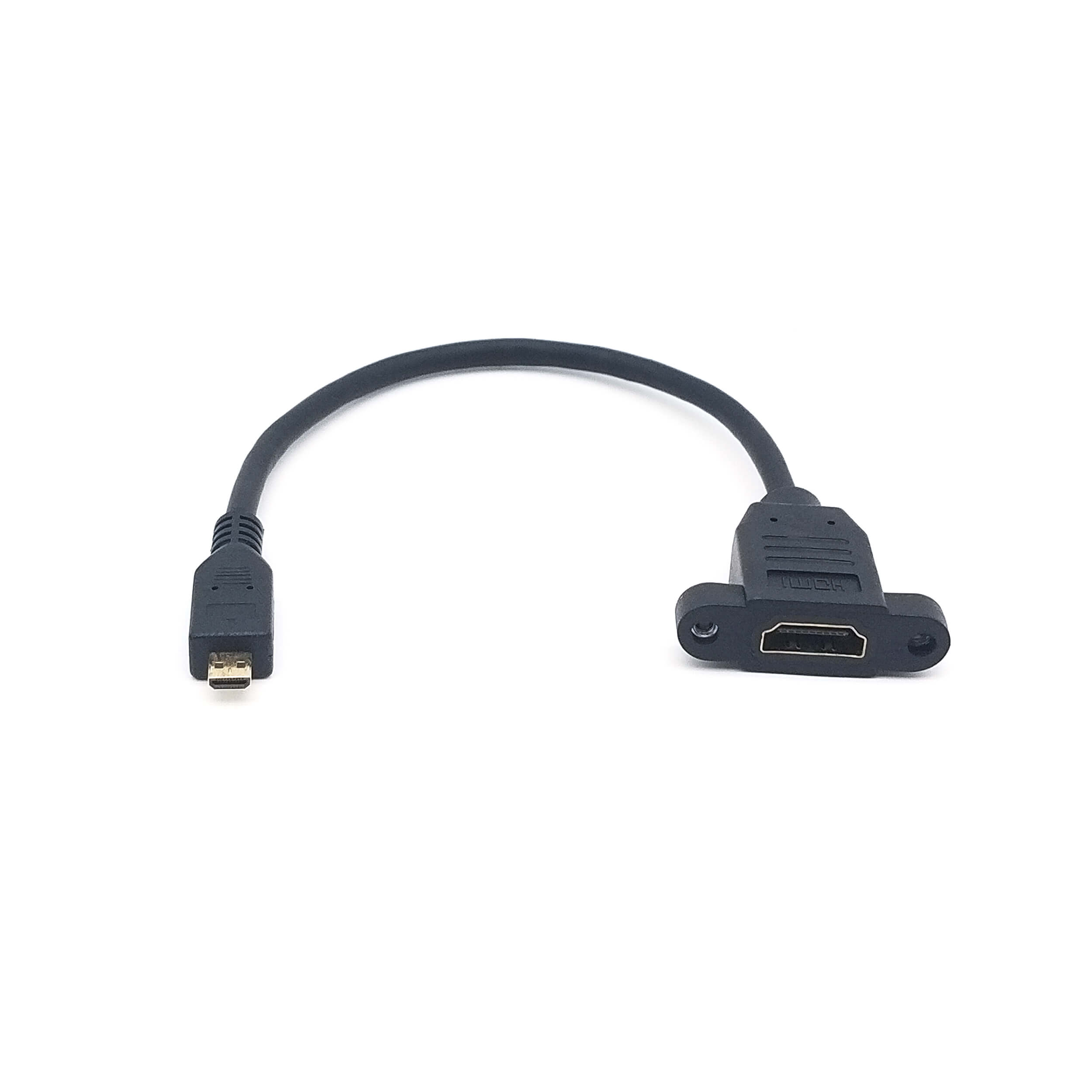

Discover our Micro HDMI to HDMI Panel Mount Cable – the essential link for seamless connectivity and high-definition entertainment. Boasting a Micro HDMI male connector on one end and a HDMI female connector on the other, equipped with secure M3 nickel plated screw locking, installation is a snap.
Crafted with gold-plated connectors and a sturdy bare copper conductor, expect pristine signal transmission. Shielded with aluminum foil and braiding, and encased in a durable PVC jacket, durability is guaranteed.
Experience stunning video resolutions up to 4K@50/60 (2160p), offering four times the clarity of 1080p/60 video resolution, with an impressive 18Gbps bandwidth. Elevate your multimedia experience with our Micro HDMI to HDMI Panel Mount Cable today.
Its specifications:
- Connector 1: Micro HDMI male, gold plated
- Connector 2: HDMI female with screw locking, gold plated
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 29±1mm
- Cable Conductor: Bare copper
- Wire Gauge: 30AWG
- Outer Diameter: 5.5mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Bandwidth up to 18Gbps
- 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
- 3D video, Deep Color, and x.v. Color™
- Compliance: RoHS, REACH
