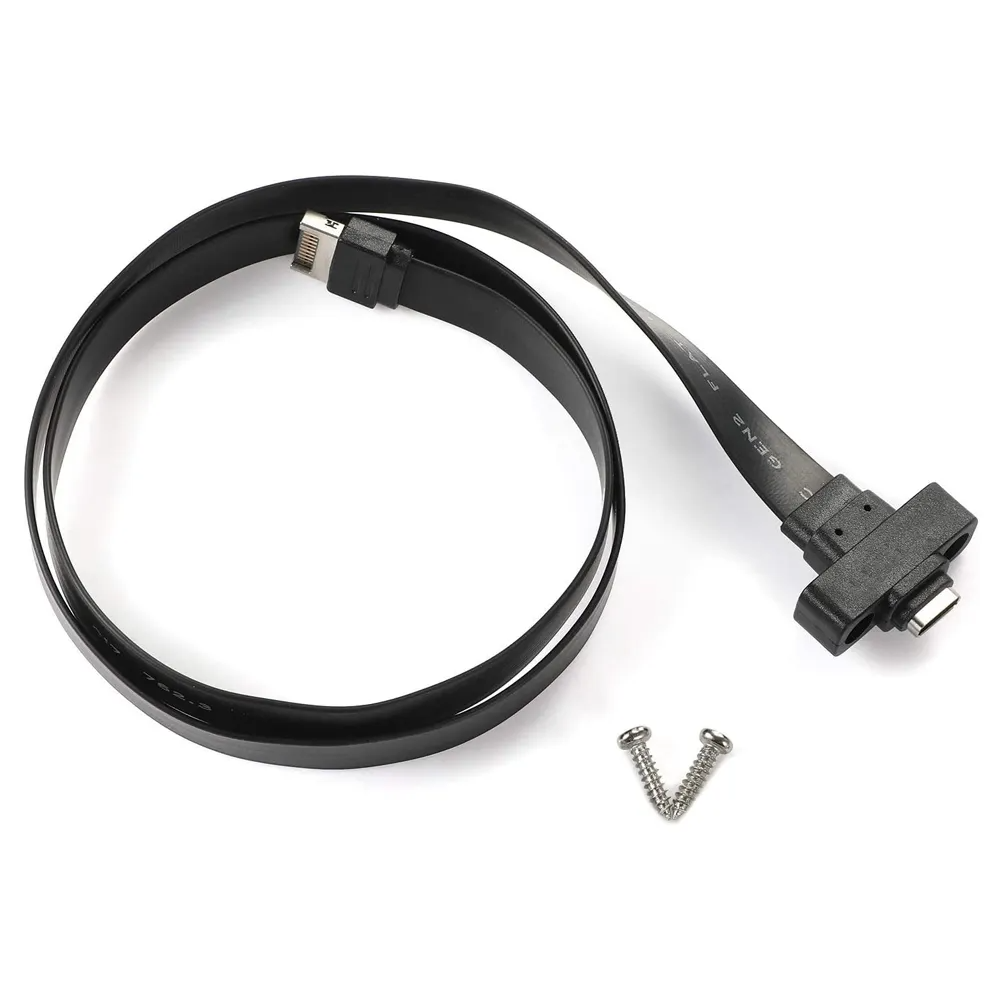

Discover the pinnacle of connectivity with the Flat USB Type-E Panel Mount Cable – an innovative solution tailored for seamless data transmission.

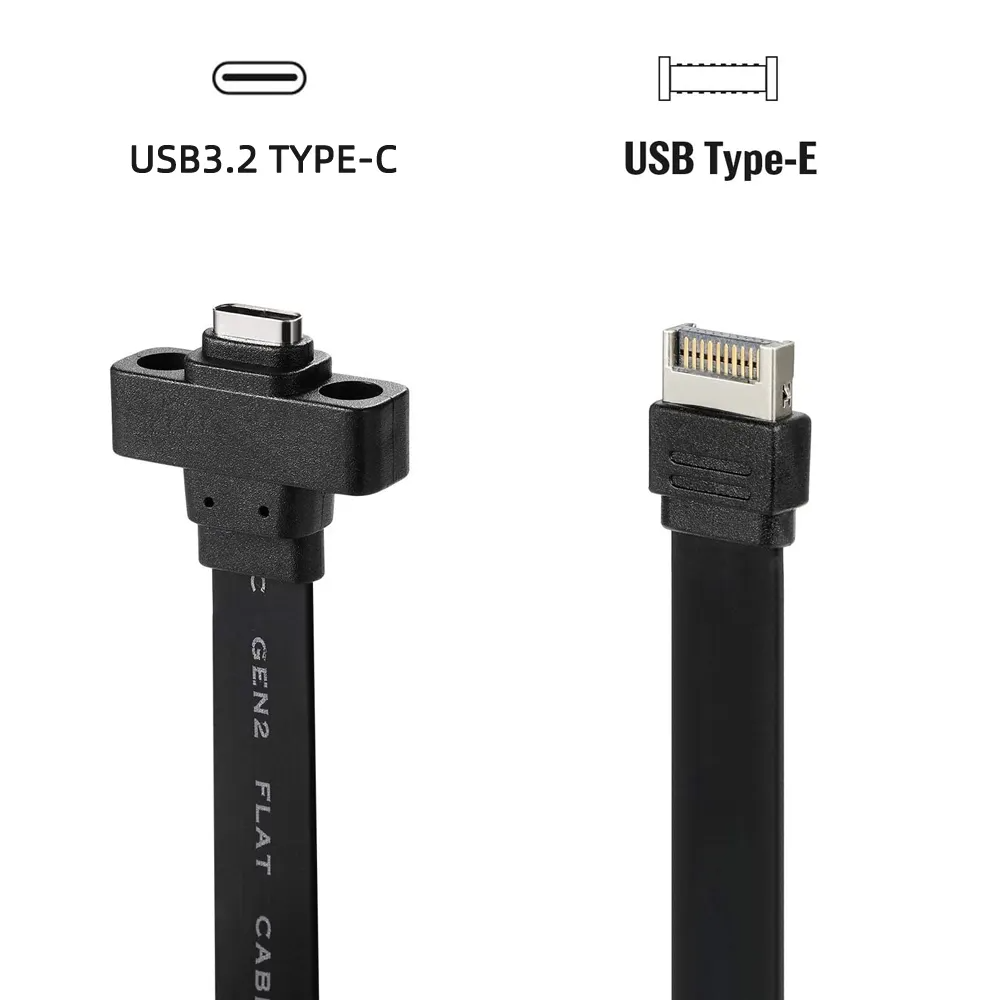

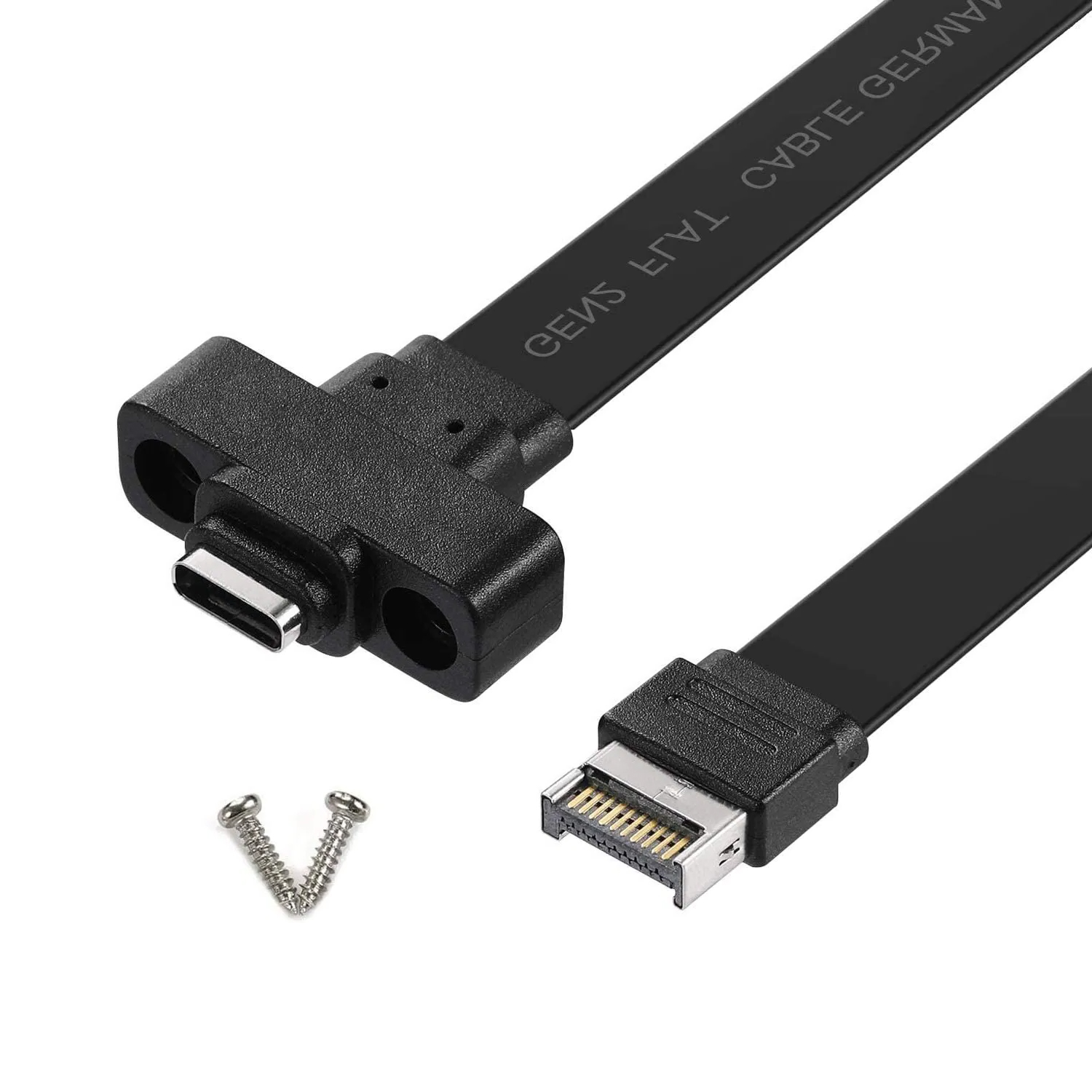

Crafted with precision, this cable boasts a USB Type-E male connector seamlessly integrated with a USB 3.1 Type C female connector, fortified with a secure screw locking mechanism for steadfast connections in any environment.
The M3 nickel plated nut and screw type ensure enduring durability, while the tinned copper conductor and dual-layer shielding comprising aluminum foil and braiding safeguard against interference, delivering blazing-fast data transfer speeds of up to 10Gbps.
Designed for versatility, it excels in multimedia streaming, file transfers, and more.
Its specifications:

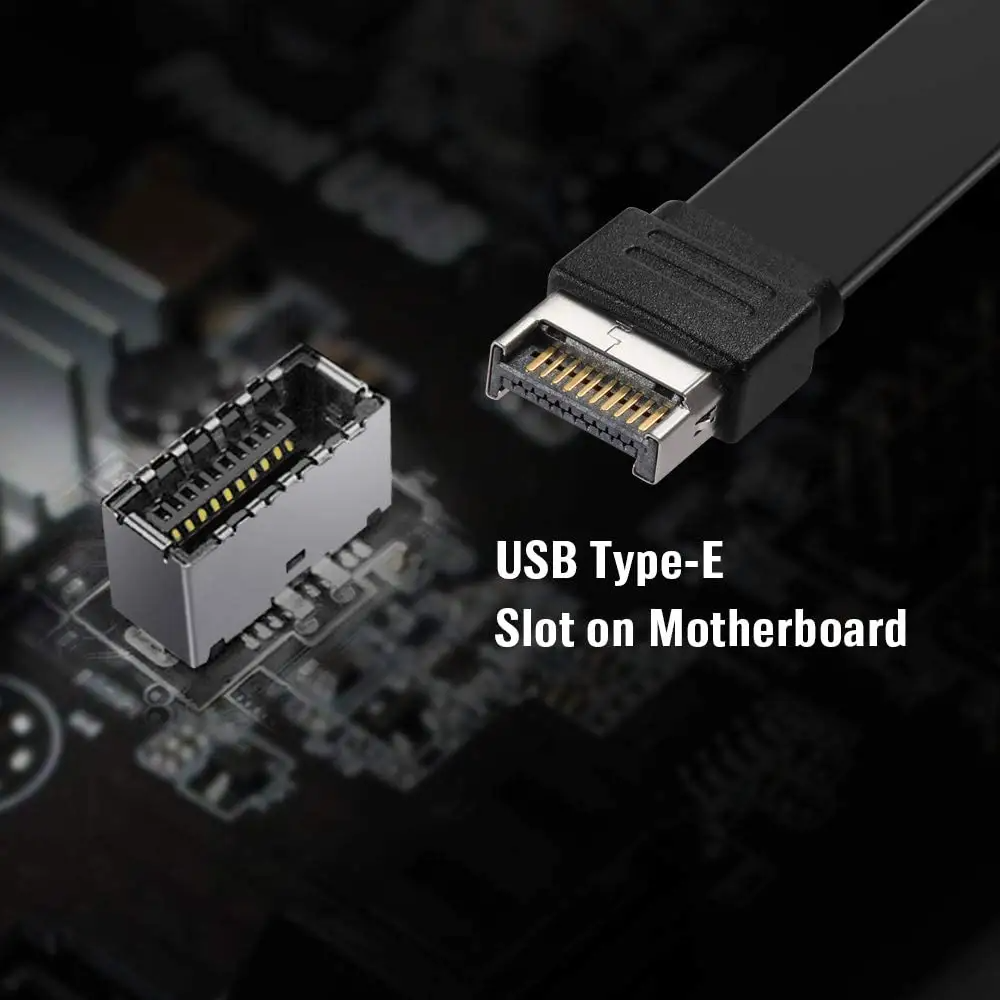

- Connector 1: USB Type E male
- Connector 2: USB 3.1 Type C female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 25.8±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 30AWG
- Outer Diameter: 5.5mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Transfer rate reaches to 10Gbps
- Compliance: RoHS, REACH
