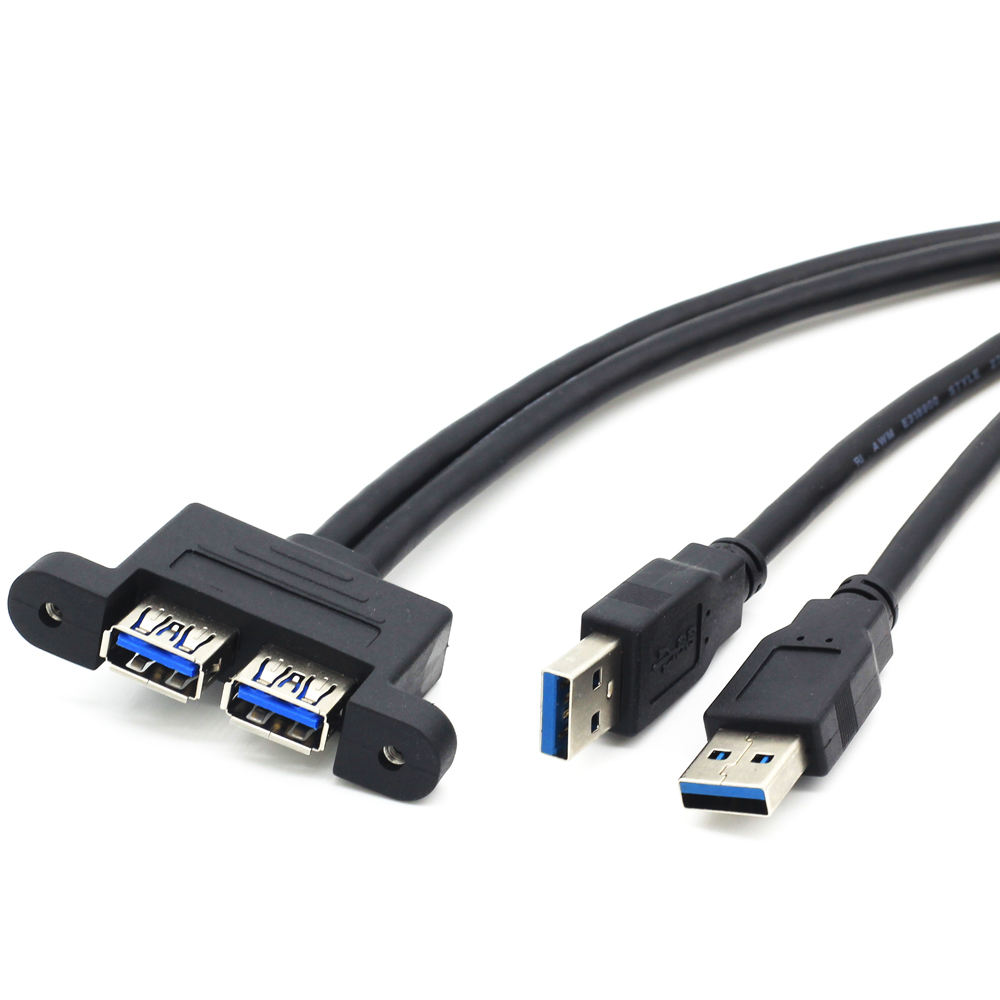

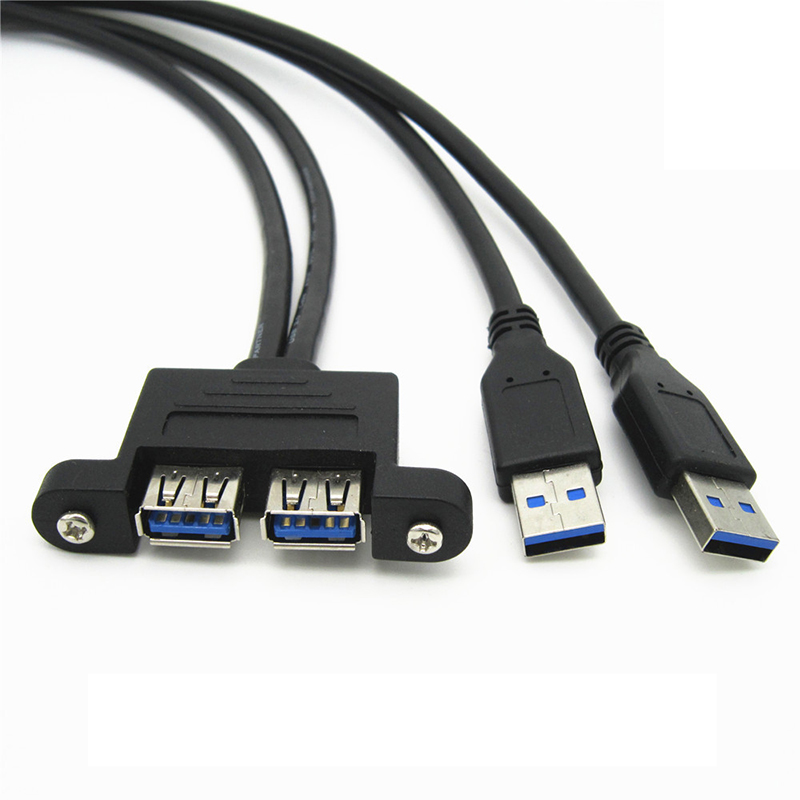

The Dual USB 3.0 A Panel Mount Cable excels as a reliable solution for connectivity needs.

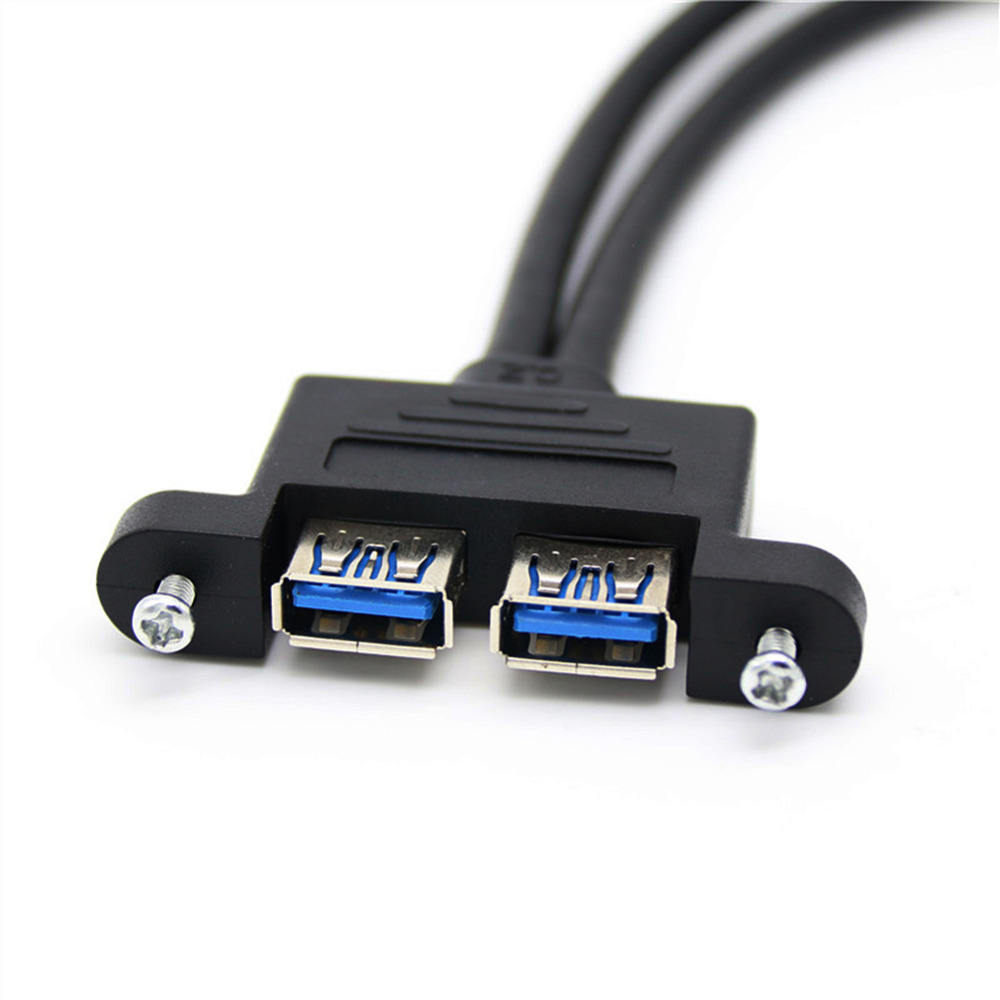

With dual USB 3.0 Type-A male connectors and a dual USB 3.0 Type-A female connector with screw locking, it ensures secure connections.
Featuring M3 nickel-plated nut and screw type for durability and a 30cm length for flexibility, it supports super-speed USB 3.0 devices at 5 Gbps and is backward compatible with USB 2.0.
Shielded with aluminum foil and braiding, it minimizes interference, while RoHS and REACH compliance ensure quality and safety.
Overall, it’s a top choice for seamless and high-speed connectivity requirements.
Its specifications:
- Connector 1: USB 3.0 Type -A male x2
- Connector 2: Dual USB 3.0 Type -A female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 47±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/28/24AWG
- Outer Diameter: 5.5±0.15mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
