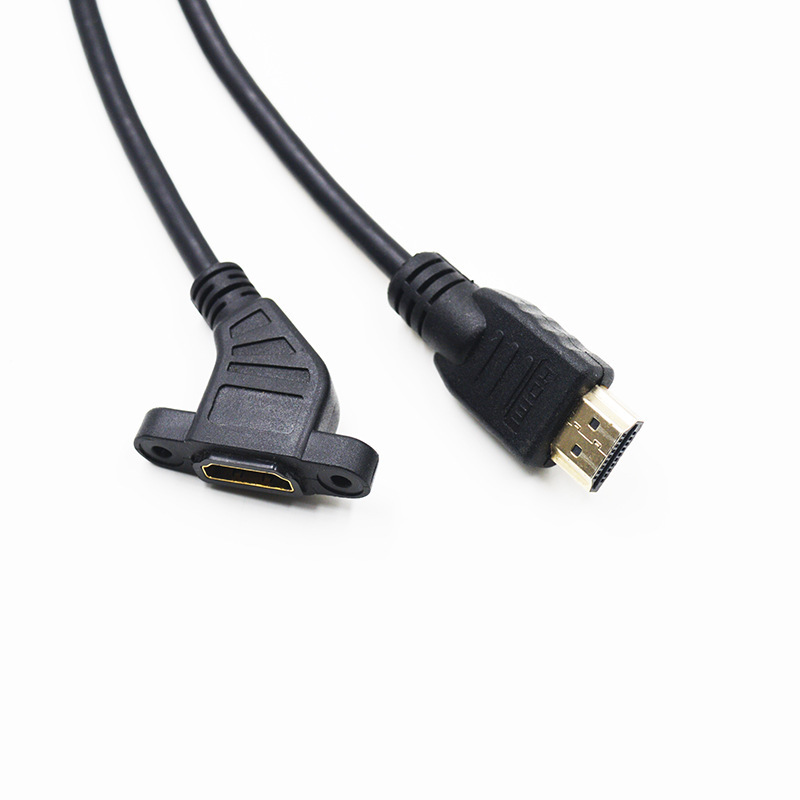

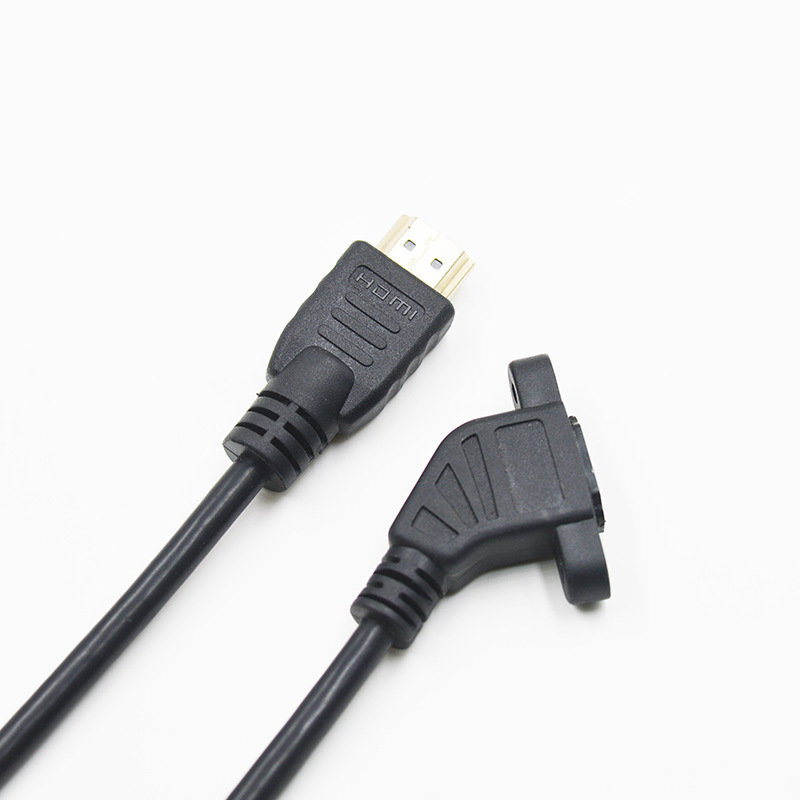

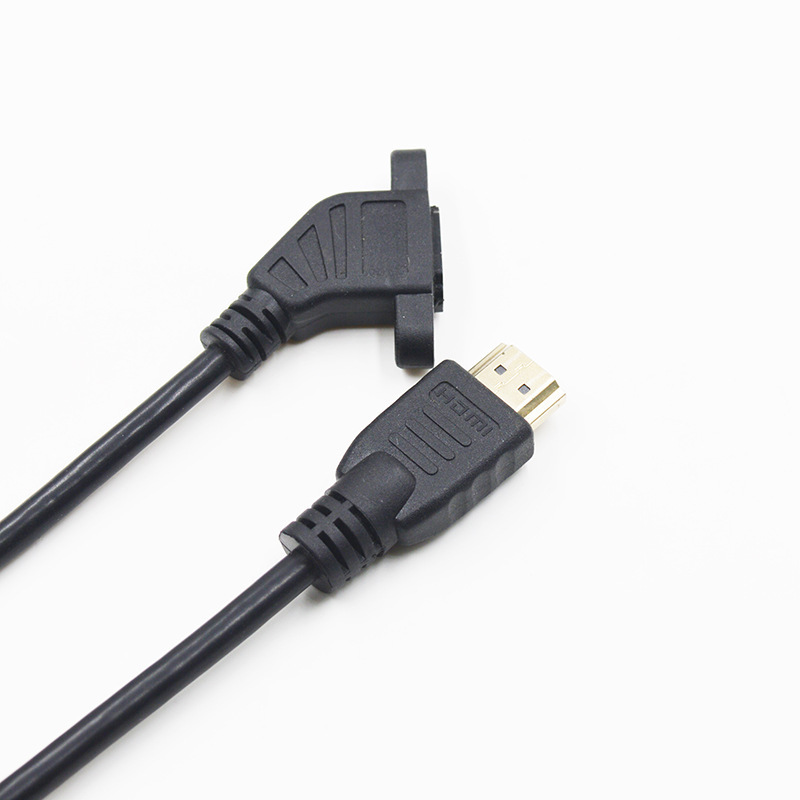

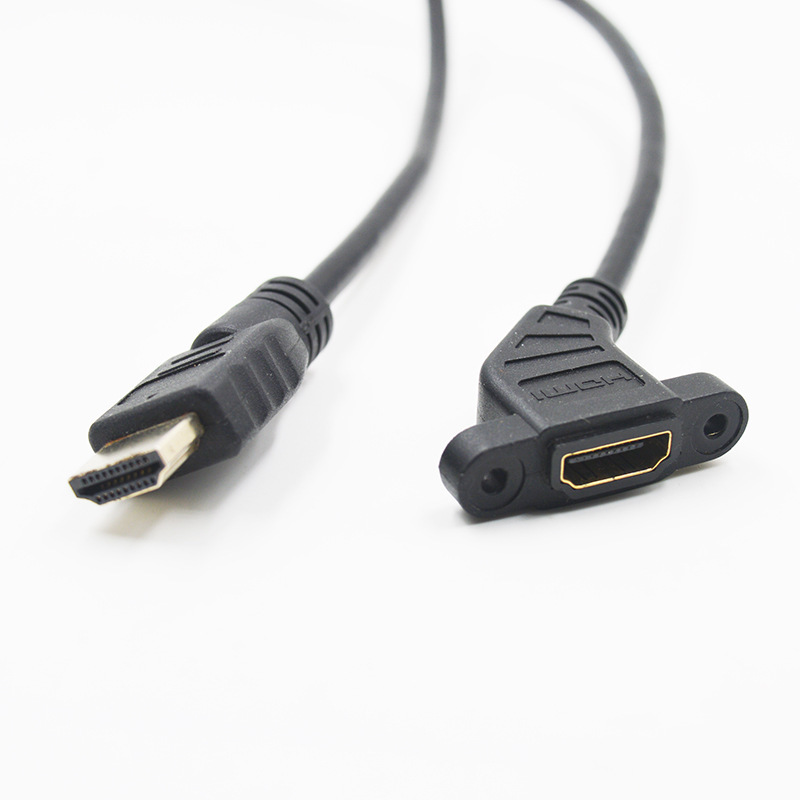

Upgrade your connectivity with our 8K 45° Angle HDMI Panel Mount Extension Cable. Featuring a gold-plated male connector on one end and a 45-degree female connector with secure M3 nickel plated screw locking on the other, installation is a breeze.
With a bare copper conductor and 28+30AWG wire gauge, expect top-notch signal quality. Shielded with aluminum foil and braiding, and encased in a durable PVC jacket, reliability is guaranteed.
Enjoy stunning video resolutions up to 8K@60Hz and a blazing 48Gbps bandwidth. Plus, indulge in 3D video, Deep Color, and x.v. Color™ support for a truly immersive experience. Elevate your multimedia setup today!
Its specifications:
- Connector 1: HDMI 2.1 male, gold plated
- Connector 2: 45° angle HDMI 2.1 female with screw locking, gold plated
- Nut and Screw type: M3 nickel plated
- Cable Conductor: Bare copper
- Hole Pitch: 25±1mm
- Wire Gauge: 28+30AWG
- Outer Diameter: 7.3mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Bandwidth up to 48Gbps
- Video resolution up to 8K@60Hz
- 3D video, Deep Color, and x.v. Color™
- Compliance: RoHS, REACH
