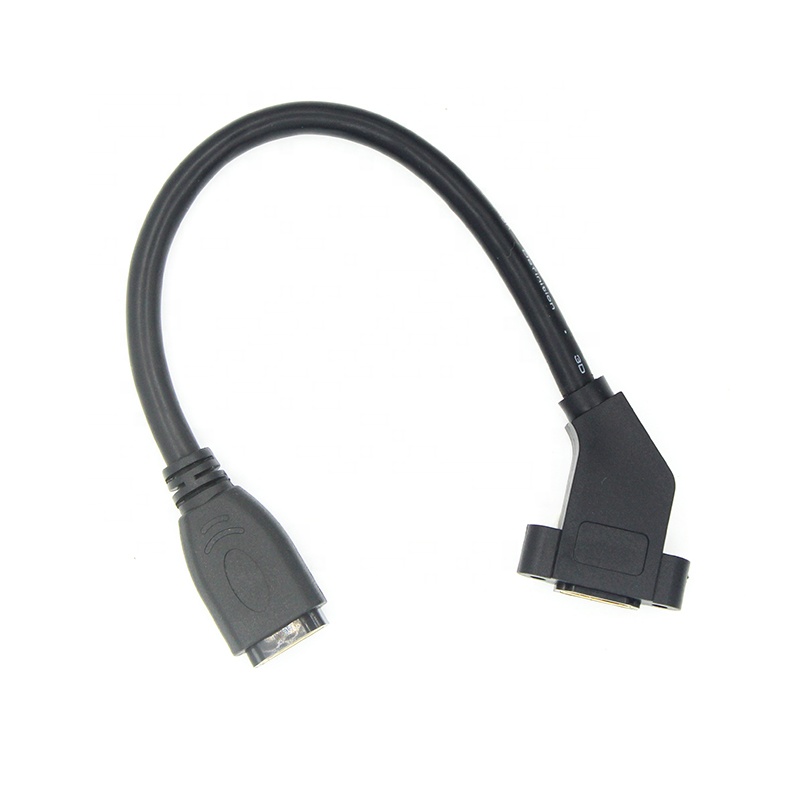

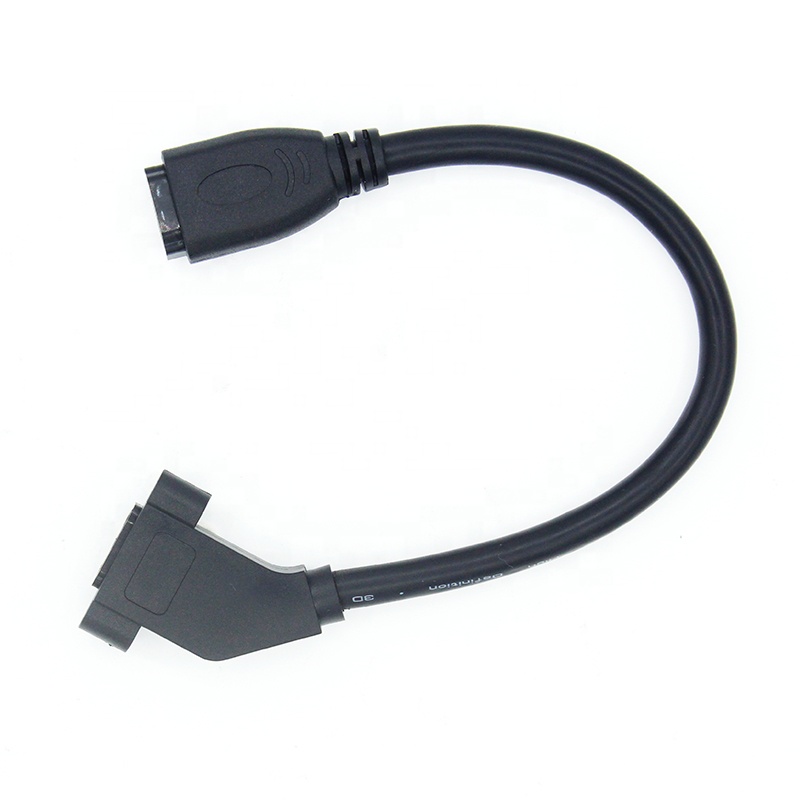

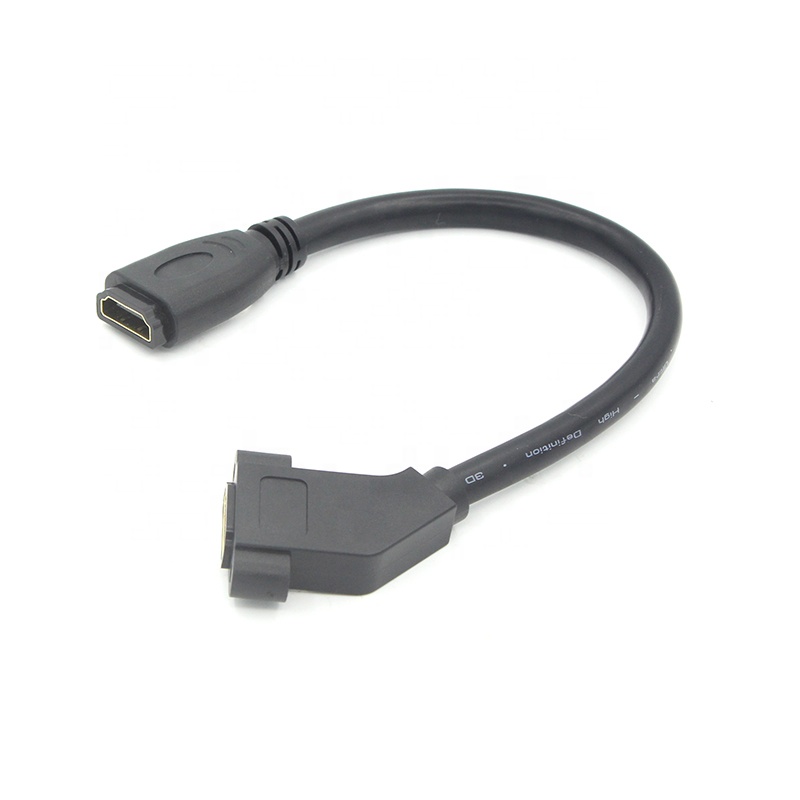

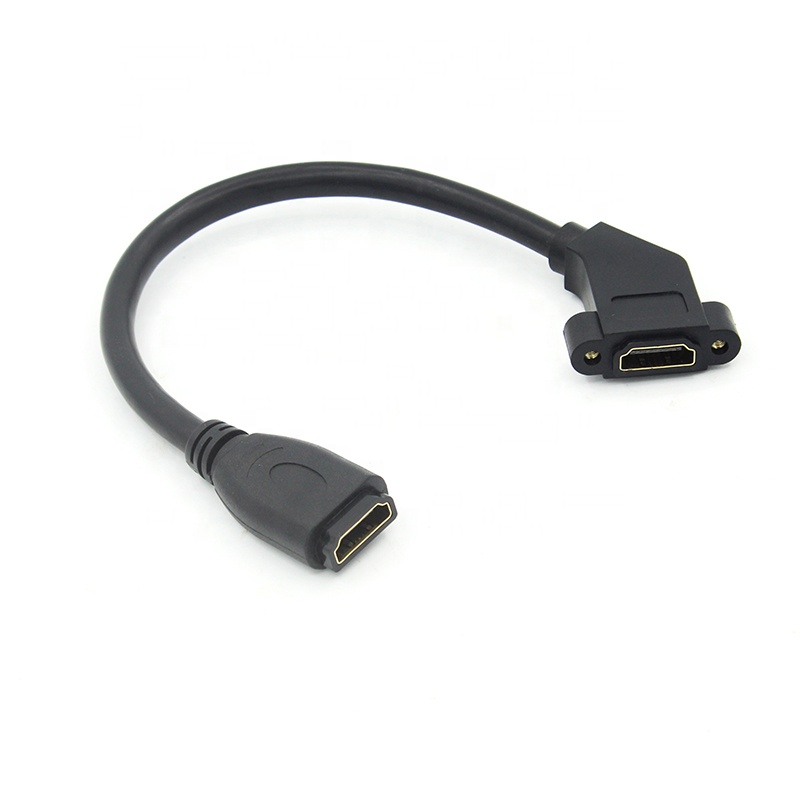

FARSINCE 8K 45° Angle HDMI Panel Mount Cable – designed for seamless high-definition connectivity in tight spaces.
With a female connector on one end and a 45-degree female connector featuring M3 nickel-plated screw locking and 25±1mm hole pitch on the other, installation is effortless.
Built with a bare copper conductor and a 28+30AWG wire gauge, it ensures reliable signal transmission.
Shielded by aluminum foil and braiding within a durable PVC jacket, it offers maximum protection.
Supporting resolutions up to 8K@60Hz and 48Gbps, as well as 3D video, Deep Color, and x.v. Color™, it delivers outstanding performance for all your multimedia needs.
Its specifications:
- Connector 1: HDMI 2.1 female

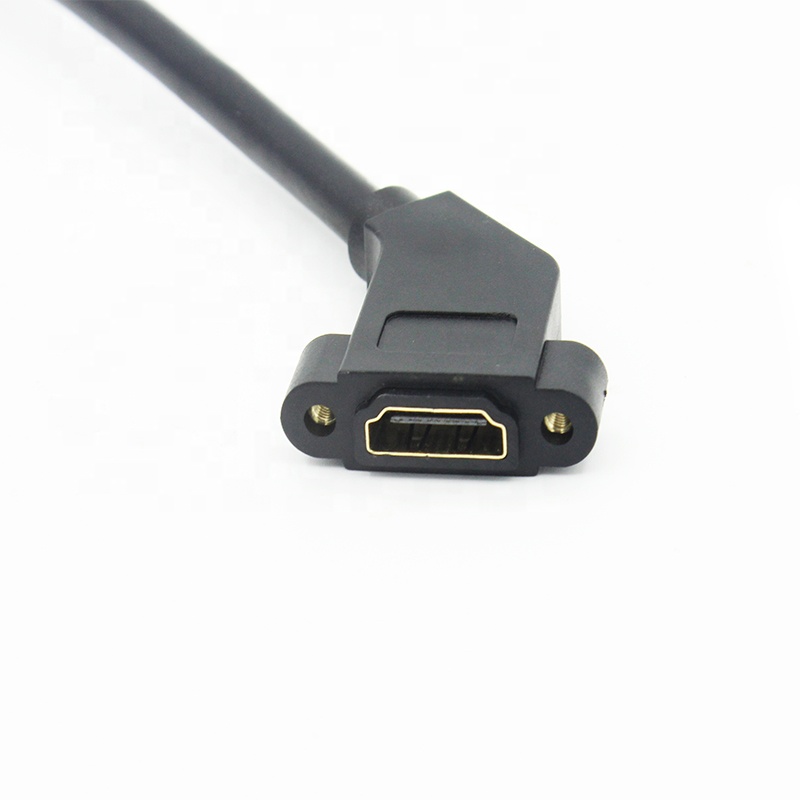

- Connector 2: 45° angled HDMI 2.1 female with screw locking
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 25±1mm
- Connector finishing: contact Gold plated, shell Gold plated
- Cable Conductor: Bare copper
- Wire Gauge: 28+30AWG
- Outer Diameter: 7.3mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support video resolutions up to 8K@60Hz, 48Gbps
- 3D video, Deep Color and x.v. Color™
- Compliance: RoHS, REACH
